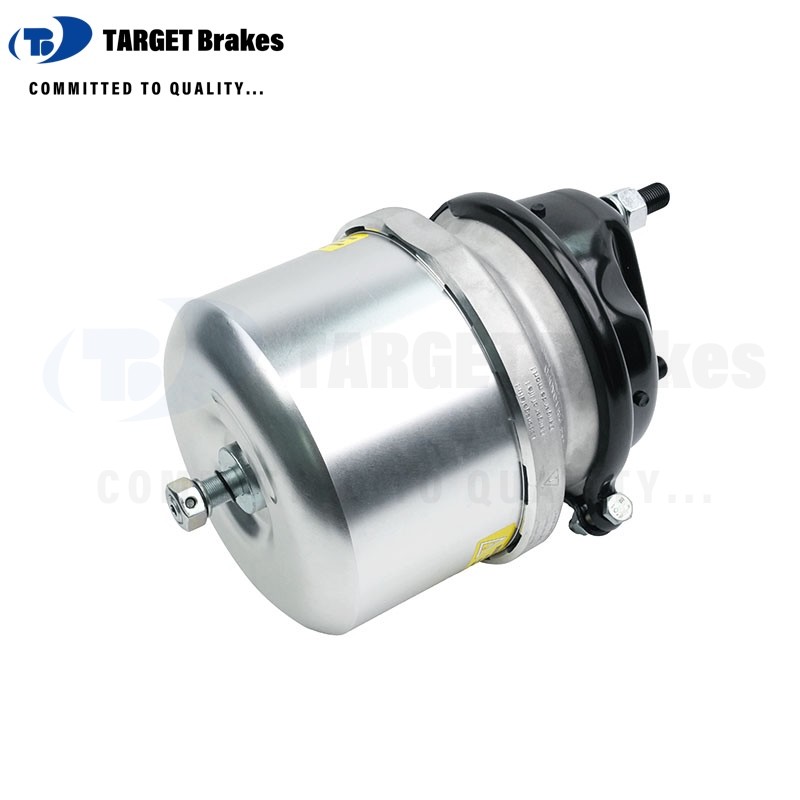

Brand: TARGET Brakes
Part Number: TB-2430PDKN-01
Chamber Style: Diaphragm and piston
Distance Between Bolts: 120.7mm
Port Threads: 2x M16 x 1.5
Stroke: 64/64mm
Pushrod Length: 15mm
Bolt Threads: M16 x 1.5
Reference No. : KNORR-BREMSE: K153999N00-BS6526; K017119N00-BS8500
SCANIA: 1802657; 1802658; 1802659; 1802660; 2147775; 1912986; 1734996; 1427480
SCANIA: 1802657; 1802658; 1802659; 1802660; 2147775; 1912986; 1734996; 1427480
Type: Disc K-24/30
Max Working Pressure: 1.03Mpa
Working Temperature: -40℃～+80℃
Life Time: Service chamber:above 1,000,000 times;
Parking chamber:above 200,000 times
Parking chamber:above 200,000 times
Leading Standard: DIN 74060-3
Finish: Non-pressure housing: E-coating;
Cylinders Aluminum anodized;
Fasterens: Zinc-plated
Cylinders Aluminum anodized;
Fasterens: Zinc-plated
Weight（kg) : 8.5
Customized service: Lazer Logo, Customized Package
Adaptive Model: SCANIA
Output Force: Spring portion output force at 30 mm stroke:10.80 [kN];
Service output at 6.5 bar & 30 mm stroke: 8.90 [kN]
Service output at 6.5 bar & 30 mm stroke: 8.90 [kN]
Release Pressure: 5.1+/-0.3 bar
Release Bolt Structures: Short release
