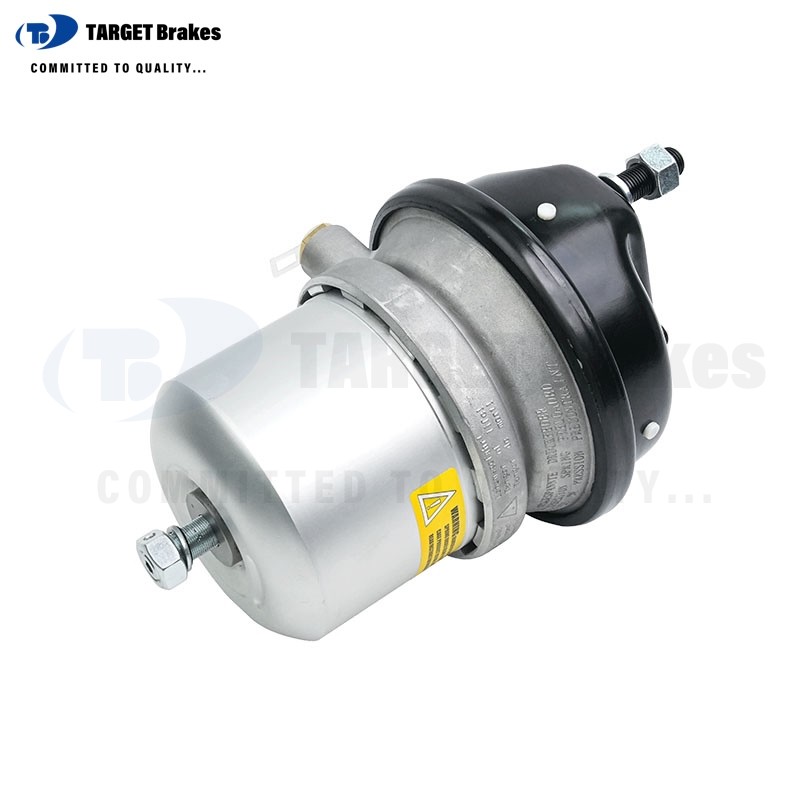

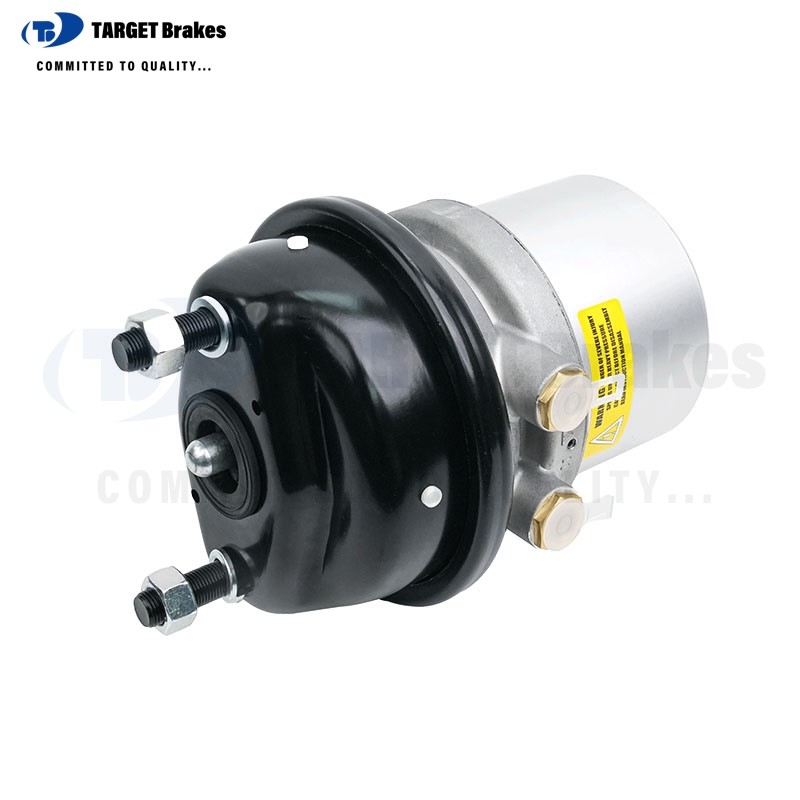

Brand: TARGET Brakes
Part Number: TB-2414PDRN-01
Chamber Style: Diaphragm and Piston
Distance Between Bolts: 120.7mm
Port Threads: 2xM16 x 1.5
Stroke: 64/45mm
Pushrod Length: 15mm
Bolt Threads: M16 x 1.5
Reference No. : KNORR-BREMSE: BK9510-K282622N00,
BS9510-K018094N00
SCANIA: 1802664,1485834,1383090, 1734994,
BS9510-K018094N00
SCANIA: 1802664,1485834,1383090, 1734994,
Type: Disc K-24/14
Max Working Pressure: 1.03Mpa
Working Temperature: -40℃～+80℃
Life Time: Service chamber:above 1,000,000 times ; Parking chamber:above 200,000 times
Leading Standard: DIN 74060-3
Finish: Non-pressure housing: E-coating;
Cylinders Aluminum anodized;
Fasterens: Zinc-plated
Cylinders Aluminum anodized;
Fasterens: Zinc-plated
Weight（kg) : 7.0
Customized service: Lazer Logo, Customized Package
Adaptive Model: SCANIA
Output Force: Service output at 6.5 bar & 30 mm stroke: 9.20 [kN];
Spring portion output force at 30 mm stroke:4.7 [kN]
Spring portion output force at 30 mm stroke:4.7 [kN]
Release Pressure: 5.5+/-0.3 bar
Release Bolt Structures: Short
