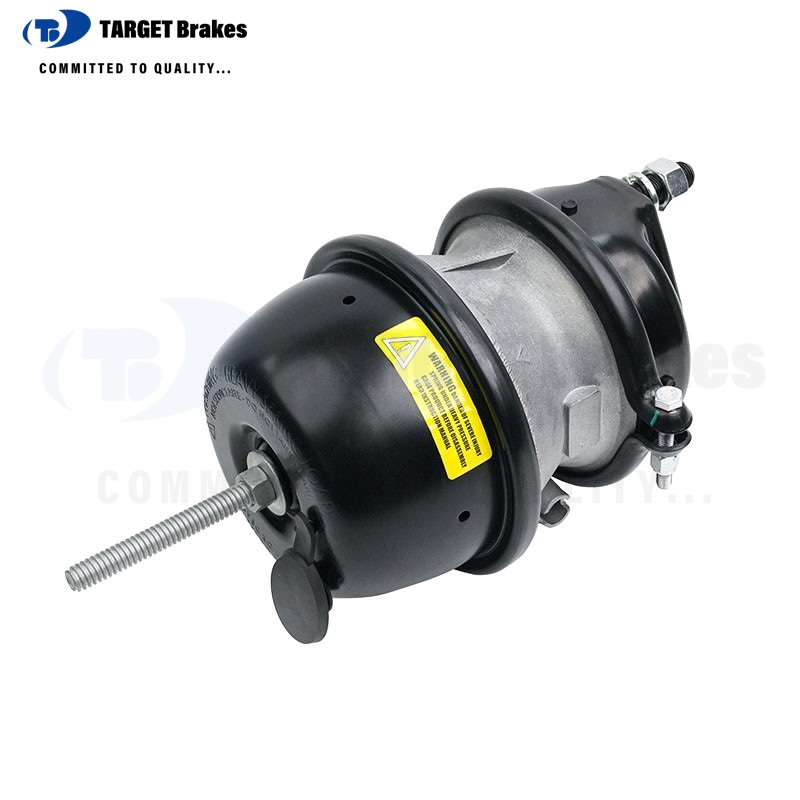

Brand: TARGET Brakes
Part Number: TB-1624DDSS-05

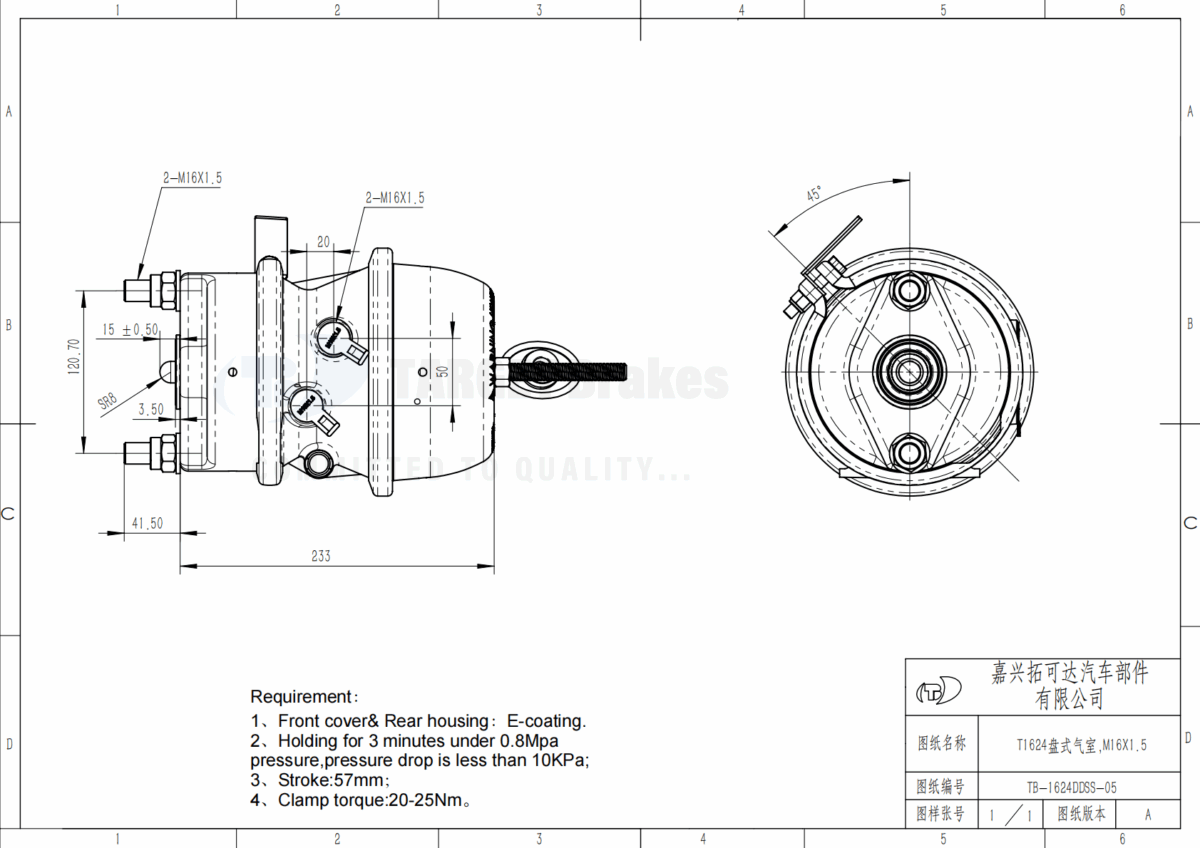

Chamber Style: Double Diaphragm
Distance Between Bolts: 120.7mm
Port Threads: 2xM16*1.5
Stroke: 57/57mm
Pushrod Length: 15mm
Pushrod Length when caged: 15mm
Reference No. : KNORR: BS7309-K159939N00,
BS7309-K192161N00
WABCO: 925 384 0010,925 384 0010
HALDEX: 135 1624 004
PROVIA: PRO7127120
GRAU: 345 1624 101
BPW: 05 444 400 10,05 444 400 20
DAF: 1526307
PACCAR: 0887765
SAF: 4454107230
SAF: 4454107730
SAF: 4454107630
SCANIA: 2089761
SCHMITZ CARGOBULL: S054998
SCHMITZ CARGOBULL: 1064931
SCHMITZ CARGOBULL: 122760
VALX: 50397003
VALX: 50397006
VOLVO: WA9253840010
GIGANT: 719001007
KRONE: 550017680
KÖGEL: 6609441, 6609442
BS7309-K192161N00
WABCO: 925 384 0010,925 384 0010
HALDEX: 135 1624 004
PROVIA: PRO7127120
GRAU: 345 1624 101
BPW: 05 444 400 10,05 444 400 20
DAF: 1526307
PACCAR: 0887765
SAF: 4454107230
SAF: 4454107730
SAF: 4454107630
SCANIA: 2089761
SCHMITZ CARGOBULL: S054998
SCHMITZ CARGOBULL: 1064931
SCHMITZ CARGOBULL: 122760
VALX: 50397003
VALX: 50397006
VOLVO: WA9253840010
GIGANT: 719001007
KRONE: 550017680
KÖGEL: 6609441, 6609442
Type: T16/24 DD Sealed Air Disc
Max Working Pressure: 1.03Mpa
Working Temperature: -40℃～+80℃
Life Time: Service chamber:above 1,000,000 times
Parking chamber:above 200,000 times
Parking chamber:above 200,000 times
Leading Standard: DIN74060-3
Finish: E-coating/Zinc-plated
Weight（kg) : 7.5
Customized service: Lazer Logo, Customized Package
Adaptive Model: VOLVO, SCANIA, Mercedes-Benz, BPW, Schmitz Cargobull, KRONE, KOGEL, SAF, VALX
Output Force: Service output at 6.5 bar & 30 mm stroke: 6.70 [kN]
Spring portion output force at 30 mm stroke:5.70 [kN]
Spring portion output force at 30 mm stroke:5.70 [kN]
Release Pressure: 5.1+/-0.3bar
Release Bolt Structures: T shape standard
